产品特点
手动释放
微动限位开关
可选无刷电机
远距离安装，电机铰链曲臂中心最大距离可达38厘米
| 型号 | L890SS | L990SS |
| 电源 | AC 230V/120V | DC 24V |
| 功率 | 110 W | 180 W |
| 开门时间 | 18 s | 16-45 s |
| 最大转矩 | 380 Nm | 470 Nm |
| 最大门宽 | 4 m | 2.5 m |
| 最大门重 | 600 kg | 400 kg |
| 工作温度 | -40℃- +55℃ | -40℃- +55℃ |
| 防护等级 | IP54 | IP54 |
| 认证 | CCC，CE | CCC，CE |

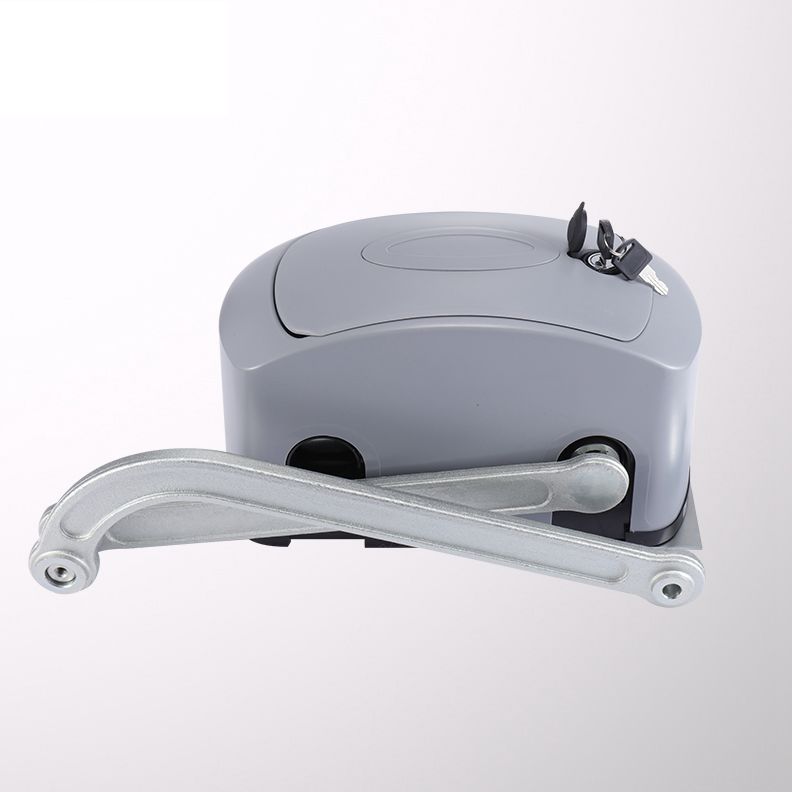

China manufacturer door operator / automatic swing gate operator
1. With the overheat protector inside, it will cut the electricity when the motor temperature reaches the rated value.
2. Stable transmission thanks to turbine and screw devices.
3. Easy to install. When the power is off, use the clutch and open the door.
Product Introduce:
1.This special gate opener is installed on the pillar
2.The arm is applied to the gate which have big pillars and leaves are installed outside of the pillars.
Specification:
| Item | L890SS | L990SS |
| Protection class | IP54 | IP54 |
| Power(V) | AC230V/AC120V | DC24V |
| Max.power | 110 | 180 |
| Opening time 90° | 18 | 16÷45 |
| Duty cycle | 50 | Intensive use |
| Max.Thrust | 380 | 470 |
| Operating temperature | -20 ℃~+55 ℃ | -20 ℃~+55 ℃ |
| Max.leaf width | 2.5 | 4 |
| Max.leaf weight | 600 | 400 |
